How Send An HTTP POST Request To A Server From Excel Using VBA?


In this post, we will explore how to send an HTTP POST request to a server from Excel VBA.In this article, we will learn how to use Excel VBA code to send a POST request to an API and retrieve data from the server.

You can download the source code for the HTTP POST request at the bottom of the post.

Api EndPoint

We are going to cover the below point in this article

  • Using Rest API Sending JSON object as a POST request
  • Send a POST and retrieve data Using Excel VBA code

Let’s understand step-by-step to Send JSON data in POST request VBA in Excel VBA with help of the rest API.

As we know that Excel doesn’t have a built JSON parser for parsing JSON strings. I’m using VBA-tools JSON parser that helps us to parse the JSON response that we return after making a post request.

with the help of  VBA-tools JSON, we can easily parse the object and get a value desire value.

go to the Git link: https://github.com/VBA-tools/VBA-JSON and download the source code.

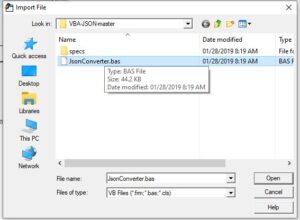

Extract that folder and Go to File and click on Import file in VBA IDE and select the JsonConverter.bas click on Open.

Open bas file

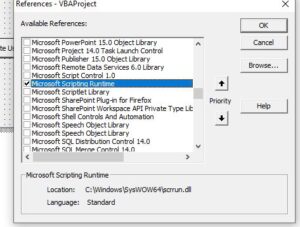

add reference of Microsoft scripting runtime references

msscript

Now all setup done for parsing the api response

VBA POST request with parameters Example -1

And this is a simple registration rest API that accepts email and password as JSON parameters and after SUCCESSFUL call return Userid and token id dummy data of user object.

Api End point: https://reqres.in/api/register

Request

{
    "email": "[email protected]",
    "password": "test@123"
}

Response(200)

{
    "id": 4,
    "token": "3434Q54454p565655tke4Pnpja7X4"
}

Vba code for calling Api

VBA code demonstrates sending an HTTP POST request to a server.

CommandButton3_Click():

  • This subroutine is triggered when "CommandButton3" is clicked.
  • It initializes variables and prepares the JSON body for the POST request.

JsonBody:

It holds the JSON data containing the email and password for registration.

Creating POST Request:

It initializes an instance of MSXML2.ServerXMLHTTP to make an HTTP POST request to the API endpoint "https://reqres.in/api/register" with the provided JSON data.The request's content-type is set to "application/json".

Sending Request:

The POST request is sent to the server with the JSON body.

Retrieving Response:

  • It retrieves the response from the server.
  • The response is parsed as JSON using JsonConverter.

Message Box:

It displays a message box containing the user's registration details, including the user ID and token obtained from the server's response.

This VBA code demonstrates how to use Excel VBA to send an HTTP POST request to a server and handle the response, enabling interaction with web APIs directly from Excel.


Private Sub CommandButton3_Click()
    Dim objpostHTTP As Object
    Dim JsonBody As String
    Dim Jsonresult As Object
    JsonBody = "{""email"":""[email protected]"",""password"":""vba1234""}"
    'here I am pulling creating json body
    Dim apiresult As String

    Set objpostHTTP = CreateObject("MSXML2.ServerXMLHTTP")
    URL = "https://reqres.in/api/register"
    objpostHTTP.Open "POST", URL, False

   objpostHTTP.setRequestHeader "Content-type", "application/json"
   objpostHTTP.Send (JsonBody)
   apiresult = objpostHTTP.responseText
    Set Jsonresult = JsonConverter.ParseJson(apiresult)
   MsgBox ("User registered with us Id:" & Jsonresult("id") & " TokenId: " & Jsonresult("token"))
End Sub

VBA POST request with parameters Example -2

And this is a simple rest API for creating user that accepts “name” and “job” as JSON parameters and after SUCCESSFUL call return user object.

Api End point: https://reqres.in//api/users

Request

{
    "name": "Alex bliss",
    "job": "HR"
}

Response(201)

{
    "name": "Alex bliss",
    "job": "HR",
    "id": "932",
    "createdAt": "2021-08-26T06:32:37.312Z"
}

Vba code for calling Api

Private Sub CommandButton2_Click()
    Dim objHTTP As Object
    Dim Json As String
    Dim Jsonresult As Object
    Json = "{""name"":""Alex bliss"",""job"":""HR""}"

    Dim result As String

    Set objHTTP = CreateObject("MSXML2.ServerXMLHTTP")
    URL = "https://reqres.in/api/user"
    objHTTP.Open "POST", URL, False

   objHTTP.setRequestHeader "Content-type", "application/json"
   objHTTP.Send (Json)
   result = objHTTP.responseText
    Set Jsonresult = JsonConverter.ParseJson(result)
   MsgBox ("User created with name :" & Jsonresult("name") & " UserId:" & Jsonresult("id"))

End Sub



Download Source Code

Excel VBA code allows sending an HTTP POST request to a server to create a user.

CommandButton2_Click():

  • This subroutine is triggered when "CommandButton2" is clicked.
  • It initializes variables and prepares the JSON body for the POST request.
Json:

  • It holds the JSON data containing the user's name and job.
Creating POST Request:

  • It initializes an instance of MSXML2.ServerXMLHTTP to make an HTTP POST request to the API endpoint "https://reqres.in/api/user" with the provided JSON data.
  • The request's content-type is set to "application/json".
Sending Request:

  • The POST request is sent to the server with the JSON body.
Retrieving Response:

  • It retrieves the response from the server.
  • The response is parsed as JSON using JsonConverter.
Message Box:

It displays a message box containing the details of the newly created user, including the user's name and ID obtained from the server's response.
How to use Excel VBA to send an HTTP POST request to a server to create a user and handle the response, enabling interaction with web APIs directly from Excel.
